TireMinder TM-77 RV TPMS with 4 Standard Transmitters

$399.00

Exclusively Through Camping World and Gander RV

The TireMinder TM-77 RV Tire Monitoring System makes it easy to stay informed of any tire pressure or temperature issues you may have on your RV, 5th wheel, or trailer. The TireMinder TM-77 features a large display, an extra strength signal booster and 4 standard transmitters.

The large, crystal clear, 3.25″ display provides simultaneous pressure and temperature readings and allows you to automatically scroll through each tire position with the push of a button. An upgraded high-power antenna and Rhino signal booster deliver maximum signal strength. The Multi-Vehicle Disconnect (MVD) allows for up to 3 separate vehicles to be added and exchanged in just a few clicks.

Transmitters on the valve stems check for tire issues every 6 seconds. If no issue is found, transmitters send updated pressure and temperature readings every four minutes. Display provides both visual and audible alarms, including blowout alarm, high-temperature alert (at 167°F), low and high-pressure alerts (15% below and 20% above baseline), and fast and slow leak alerts (3 psi or more in 2 minutes or less and 6 psi or more in 10 minutes or less).

System Features:

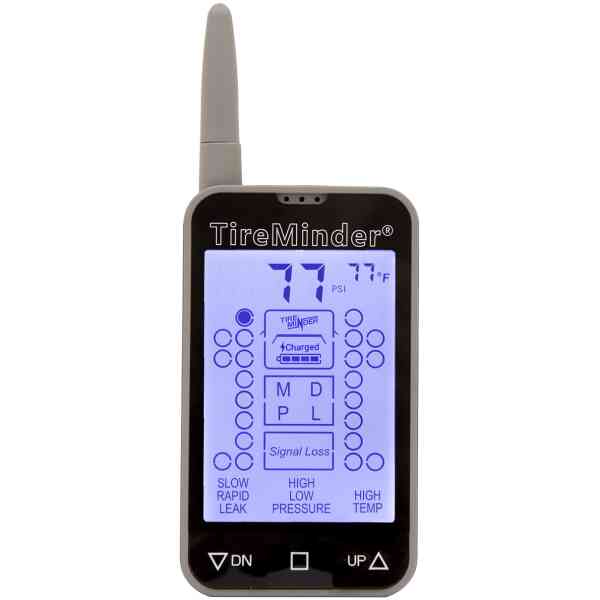

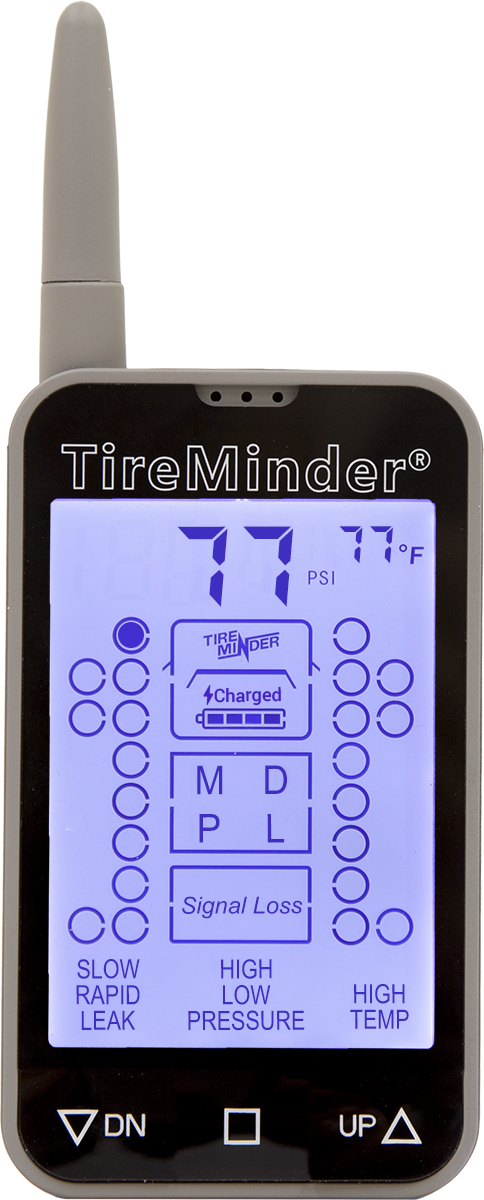

  • Large, crystal-clear 3.25″ display
  • Monitors up to 22 tires (0 to 232 PSI); extra transmitters sold separately.
  • Simultaneous pressure and temperature readings
  • Automatically scrolls through each tire position with the push of a button
  • Multi-Vehicle Disconnect (MVD) allows for up to 3 separate vehicles to be added and exchanged in just a few clicks
  • Upgrade High Power Antenna
  • Visual and audible alarms
  • Blow-out alarms
  • Signal booster included for optimal signal strength
  • Transmitters check for tire issues every 6 seconds
  • Transmitters send updated pressure and temperature readings every 4 minutes (if no issue found)
  • Fast and slow leak alerts (3 PSI or more in 2 minutes or less and 6 PSI or more in 10 minutes or less)
  • Low- and high-pressure alerts (15% below baseline and 20% above baseline)
  • High-temperature alert (alerts at 167° F)
  • Replaceable CR1632 batteries
  • Rechargeable monitor with battery indicator
  • Single-action memory delete
  • Auto-Search function allows the TM-77 to receive updated pressure and temperature readings at a push of a button
  • Rapid Connect
  • Lightweight 0.5-oz. standard transmitters
  • Includes Free TireMinder Battery Replacement Program through 2028
  • Award-winning customer support based in USA

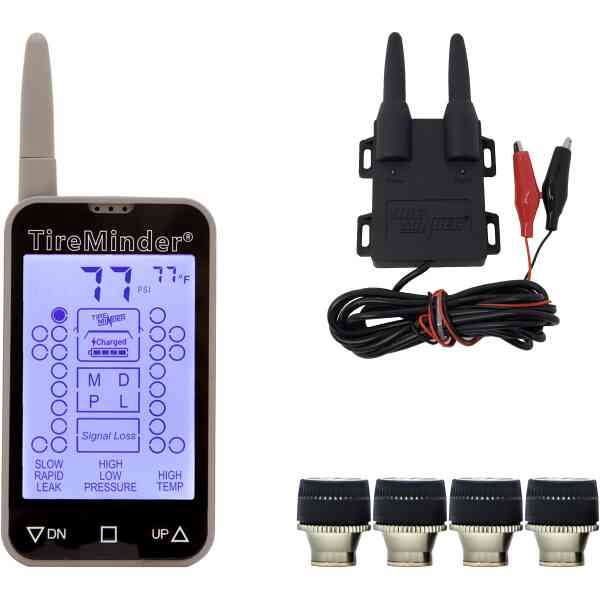

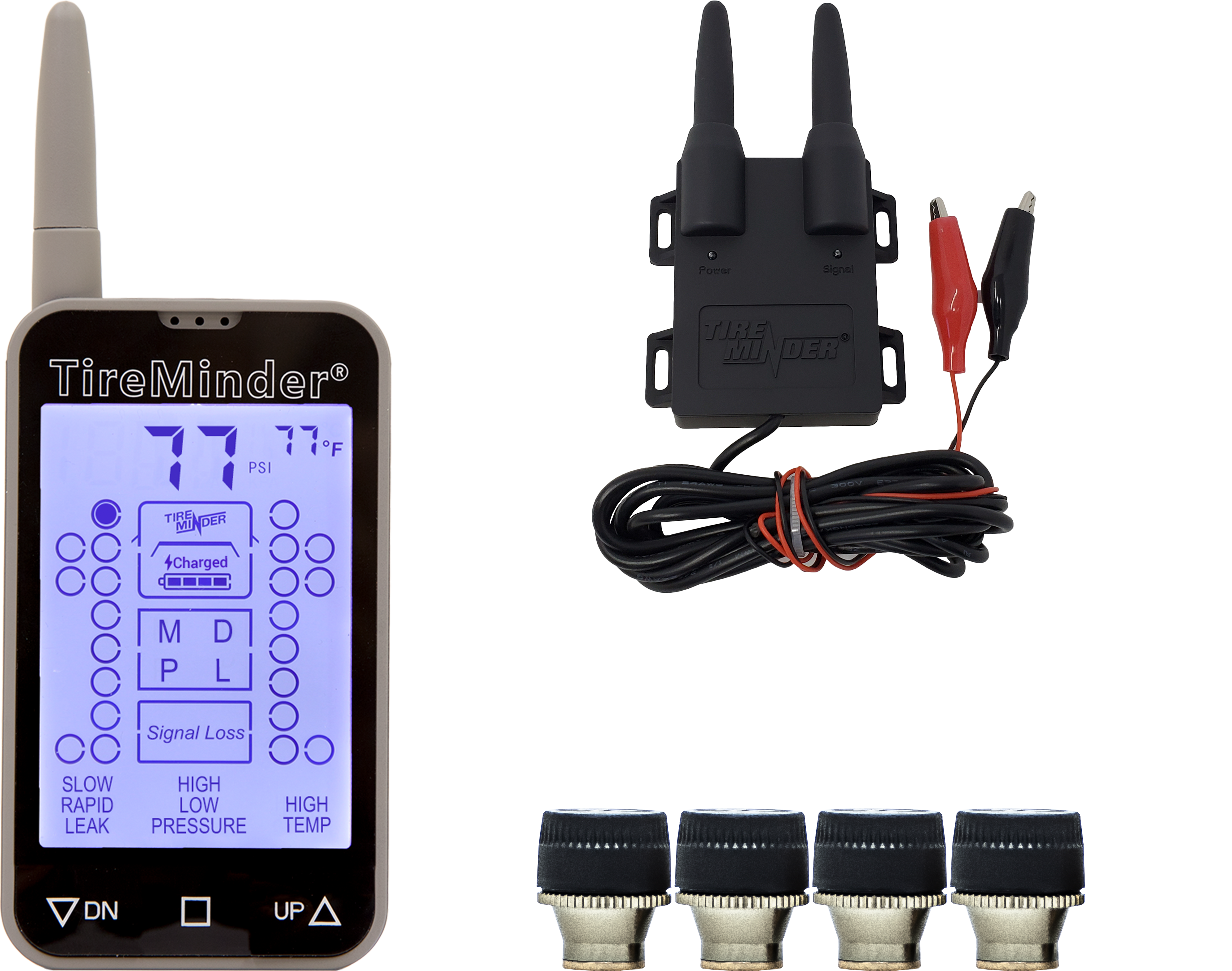

Kit Includes:

  • 1 TireMinder TM-77 Monitor
  • 4 TireMinder Standard Brass Transmitters (for use with rubber, brass, or steel valve stems). If using on a rubber valve stems, you must ensure that is a high quality valve stem with no cracking or other quality issues.
  • 1 Hard-Wired Rhino Signal Booster with Alligator Clips
  • 8 CR1632 Batteries
  • 1 Mounting Bracket
  • 1 Micro USB Cable and DC Charger
  • 4 Anti-Theft Locking Nuts
  • 1 Wrench with Valve Core Tool
  • 4 Additional O-Rings
  • 1 User Manual
  • 1 Warranty Card
  • 1 TireMinder Pouch



Specifications:

Part No. TM22119
Monitor Screen Size 3.25” diagonal
Monitor Color Standard monochrome display
Transmitters Included 4 standard transmitters
Signal Booster Included 1 high powered signal booster
Max Tires Simultaneously Monitored 22 at the same time
Max Vehicles Simultaneously Monitored 3 at the same time
Total Monitorable Vehicles 3 in total
Transmitter Weight 0.5 ounces with battery installed
Transmitter Battery CR1632 (replaceable)
Tire Issue Parameters Pressure loss of 3 PSI or more in less than 2 minutes.

Pressure loss of 6 PSI or more in 2 to 10 minutes.

Pressure loss of 15% or more of the baseline pressure.

Pressure increase of 20% or more of the baseline pressure.

Internal tire temperature of 167°F (75°C).

Internal tire temperature that exceeds 185°F (85°C).

Valve Stem Compatibility Compatible with all RV valve stems including rubber, brass, nickel-plated brass, and steel valve stems. If using with rubber valve stems, ensure that it is a high-quality valve stem with no cracking or quality issues.
Estimated Installation Time 10 to 15 minutes



TireMinder TM-77 User Manual:

Link to technical support.
TireMinder TM-77 English PDF
TireMinder TM-77 French PDF

Weight 2.5 kg
Dimensions 4.5 × 5.5 × 7.5 cm
Product UPC/EAN

C21860DC
